Goodness-of-fit tests
Recall our first case study, where we modeled the first digits of numbers with Benford’s law.
Indeed, we got a similar empirical distribution of the first digits in a sample of prices. However, the empirical frequencies were not exactly the same as the probabilities of the Beford’s law. So, in fact, one could question the applicability of the distribution model to the data. In such situation, the so-called goodness-of-fit tests can help.
Goodness-of-fit tests check whether the actual distribution of a sample corresponds to a given distribution model. Before we assess the goodness of fit for prices distribution, let us first understand such tests using a simple example with dice.
Rolling Dice
After rolling a die \(1000\) times, the following contingency table results:
\[\begin{equation*} \begin{array}[t]{l|cccccc} \hline \text{number}& 1 & 2 & 3 & 4 & 5 & 6\\ \text{frequency} & 162 & 160 & 166 & 164 & 170 & 178\\\hline \end{array} \end{equation*}\]
Is the die fair? In other words: Is the observed deviation the dice numbers of \(166.66\) (equal probabilities) significant?
\(\chi^2\)-Goodness-of-fit test (for discrete random variables with finite number of values)
Given \(n\) independent repetitions \(X_1,\ldots, X_n\) of a random variable \(X\) with values \(\{a_1,\ldots, a_k\}\) and their frequencies \(h_i\) in a sample: \[\begin{equation*} \begin{array}[t]{l|cccc} \hline % \text{values of }X & a_1 & a_2 & \cdots & a_k\\ \text{absolut frequencies} & H_1 & H_2 & \cdots & H_k\\\hline \end{array} \end{equation*}\]
The assumed distribution is formulated as a null hypothesis: \[\begin{equation*} H_0: \mathbb P(X=a_i) = p_i,\quad \text{ for all } i=1,\ldots, k. \end{equation*}\]
Alternative hypothesis: \(H_1: \mathbb P(X=a_i)\not=p_i\) for at least one \(i\).
Summing up the standardized deviations from the target values provides the test statistics: \[\begin{equation*} \chi^2 = \sum_{i=1}^k \frac{(H_i-n p_i)^2} {n p_i} \end{equation*}\]
For large \(n\) (\(n\rightarrow\infty)\) the test statistics \(\chi^2\) is approximately \(\chi^2\)-distributed with \(k-1\) degrees of freedom under \(H_0\). (The number of degrees of freedom decreases additionally with the number of the estimated distribution parameters.)
For a concrete sample, we have realizations of absolute frequencies \(h_i, i=1, \ldots ,k\) and compute the values of the test statistics above: \[\begin{equation*} \hat\chi^2 = \sum_{i=1}^k \frac{(h_i-n p_i)^2} {n p_i} \end{equation*}\]
\(H_0\) is rejected whenever the realized value of the test statistics \(\hat\chi^2\) falls greater than the critical value \(\chi^2_{1-\alpha(k-1)}\).
Rolling Dice
In the dice example we get the test statistic: \[\begin{equation*} \chi^2 = \sum_{i=1}^6 \frac{(h_i - 1000\cdot 1/6)^2} {1000\cdot 1/6} = \frac{32}{25} = 1.28. \end{equation*}\] If you choose \(\alpha=0.1\), you get \[\begin{equation*} 1.28 < \chi^2_{0.9(5)} = 9.2364, \end{equation*}\] i.e. the null hypothesis cannot be rejected.
\(\chi^2\)-Goodness-of-fit test
Hypothesis: \[\begin{equation*} H_0: \mathbb P(X=a_i) = p_i,\quad \text{ for all } i=1,\ldots, k \text{ vs. } H_1: \mathbb P(X=a_i)\not=p_i$ \text{ for at least one } $i$ \end{equation*}\]
Test statistics: \[\begin{equation*} \chi^2 = \sum_{i=1}^k \frac{(H_i-n p_i)^2} {n p_i}\sim\chi^2_{(k-1)} \end{equation*}\]
Test statistics value based on sample frequencies \(h_i\): \[\begin{equation*} \hat\chi^2 = \sum_{i=1}^k \frac{(h_i-n p_i)^2} {n p_i} \end{equation*}\]
Rejection region: \[\begin{equation*} \hat\chi^2 > \chi^2_{1-\alpha(k-1)} \end{equation*}\]
Goodness-of-fit: Benford’s law for prices
Now we test, whether the distribution induced by Benford’s law is appropriate for the sample of \(50\) prices in our first case study.

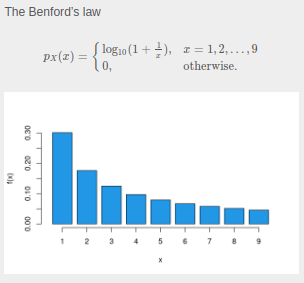

Recall, that we computed the following probabilities for the Benford’s law:
\[\begin{array}{rrrrrrrrrr} \hline x_i& 1 & 2 & 3 & 4 & 5 & 6 & 7 & 8 & 9 \\ \hline p_i& 0.30 & 0.18 & 0.12 & 0.10 & 0.08 & 0.07 & 0.06 & 0.05 & 0.05 \\ \hline \end{array}\]
Later on, we also computed the sample frequencies:
\[\begin{array}{rrrrrrrrrr} \hline a_i & 1 & 2 & 3 & 4 & 5 & 6 & 7 & 8 & 9 \\ \hline h_i & 17 & 11 & 9 & 4 & 2 & 2 & 2 & 2 & 1 \\ \hline \end{array}\]
Conduct the \(\chi^2\) goodness-of-fit test for the sample.
- Determine the values:
- Compute the values of the test statistics. You can use the following R-chunk to do that:
#frequencies
freqs = c(17,11,9,4,2,2,2,2,1)
#probabilities
x = seq(from=1,to=9,by=1) # construct a number sequence 1,2,...,9 for the X-values
probs = log10(1 + 1/x)
#chi2
n = 50
chi2 = sum((freqs - probs*n)^2/(probs*n))
chi2- Compute the \(p\)-value, i.e. \(\mathbb P(\chi^2 >\hat\chi^2)\) using the \(\chi^2\) distribution with \(k-1\) degrees of freedom under \(H_0\). You can use the function
pchisq(x, df)to compute the values of the cumulative distribution function of \(\chi^2\) distribution atxwithdfdegrees of freedom.
pval = 1 - pchisq(chi2,8)
pval- Test decision:
